High voltage dry-type iron core reactor with high voltage parallel capacitor series and connected with grid effectivelycaninhibit leave harmonics in grid, limit inrush current, improve power grid voltage waveform of system and increase the power factor. To play bigger role in safe operation in other equipment of power capacitor and grid, and power system reactive is an important equipment of reactive power compensation device.

■Main technical parameters

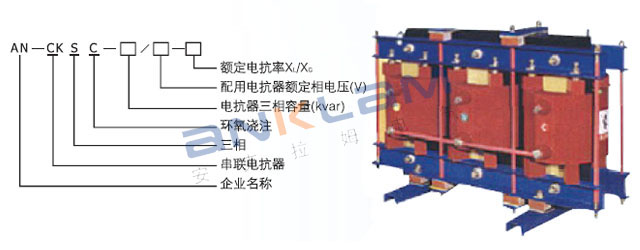

■Structure characteristic

1.High quality silicon steel core, the air gap in the reactor core does not change in the long time running.
2.The end face of core end curing quality end face glue, so that the silicon steel sheet is firmly combined, greatly reducing the noise of operation.
3.Coil is the epoxy pouring type, and the coil inside and outside epoxy glass mesh cloth to do enhancement, adopt gradeH epoxy tree system invacuum table to make coil not into the insulation performance, and mechanical strength of high energy resistance under high current impact and heat shock and that not cracking.
4.The epoxy casting coil is not water absorbing and partial discharge is small, also it can be operated safely in the harsh environment.
5.The upper and lower end of the coil is made of epoxy pad and silicone rubber pad, which effectively canreducevibration of coil.
6.It' s more smaller volume, lightweight, small floor space, simple structure and convenient installation compare with traditional oil immersed reactor andair reactor.

Specification and dimension of other parameters can telephone consultation.
