Self-healing low voltage parallel capacitor of AN-CA type
管理员：admin2011-6-13

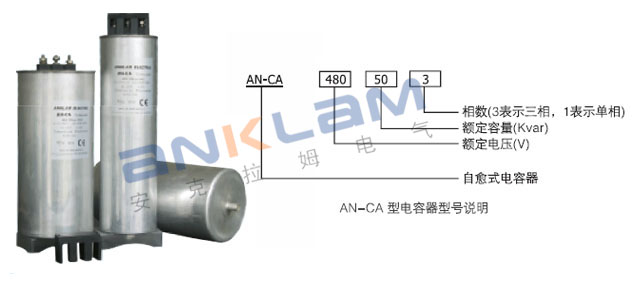

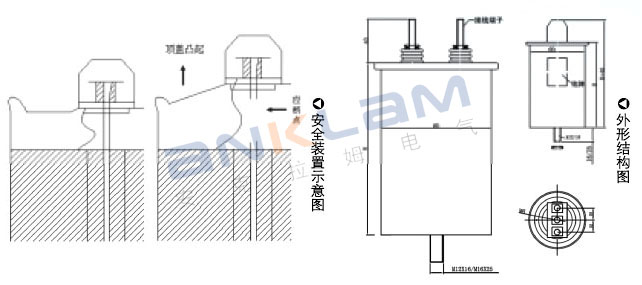

AN-CA series self-healing low voltage parallel capacitor is made by high-quality aluminum cylindrical shell, beautiful appearance and small size, so that the same set of capacitor compensation device can be installed more capacity. At the bottom of the bolt is not only the jnstallation of bolts, but also reliable grounding bolts and make your installation more convenient.
Design of long-life and multicomponent, increase heat dissipation area to make lower temperature of capacitance and prolong service life of capacitor, the overall capacitor passed strict test and quality control, and each new product of capacitor through high vacuum for long time drying treatment, maximum dispatch water and air of new product and encapsulate in vacuum conditions to ensure vacuum and seating of new product, and improve on product quality; the average service life up to 100000 hours.
■Main technical parameters
| Overvoltage | Un+10%(8 hours/24 hours)/Un+30%(continue in 1 minute) |
| Overcurrent | 1.3 x 1n |
| Surge current | Rated current is 200 times |
| Dielectric loss | < 0.2W/Kvar |
| Tolerance | -5/5% |
| Voltage withstand between terminals | 2.15Un, AC, 10S |
| Voltage withstand between shell | 3000V, VC, 10S |
| Designed life | 100000 hours |
| Environment temperature | -25℃/D (highest+55℃) |
| Terminal | Bolt of M6/M8maximunn can connect cable on 2mm2 |
| Use occasion | Altitude≤3000m Relative humidity≤95% |
| Installation and grounding | Shell bottom of M12/M16bolt |
| Safety | Self-healing technology, over pressure protection device, over current protector |
| Discharge device | Built in discharge resistance |
| Dielectric material | High quality polypropylene film |
| Filling material | NON-PCB |
■Model parameter list
| Model specification | Rated capacity | Approved capacity | Rated current | Measurement (mm) | Connection type | Construction bolt |
| Kvar | (uF) | A | 外径(D)X高度(H) | |||
| AN-CA400-15-3 | 15 | 3×100 | 3×21.7 | 96×240 | △ | M16×25 |
| AN-CA400-20-3 | 20 | 3×133 | 3×29 | 116×240 | △ | M16×25 |
| AN-CA400-25-3 | 25 | 3×166 | 3×36 | 106×290 | △ | M16×25 |
| AN-CA440-10-3 | 10 | 3×55 | 3×12.8 | 86×240 | △ | M12×16 |
| AN-CA440-15-3 | 15 | 3×82 | 3×19 | 96×240 | △ | M16×16 |
| AN-CA440-20-3 | 20 | 3×110 | 3×26 | 116×240 | △ | M16×25 |
| AN-CA440-25-3 | 25 | 3×137 | 3×32 | 106×290 | △ | M16×25 |
| AN-CA440-30-3 | 30 | 3×164 | 3×38 | 116×290 | △ | M16×25 |
| AN-CA480-15-3 | 15 | 3×69 | 3×18 | 96×240 | △ | M16×16 |
| AN-CA480-20-3 | 20 | 3×92 | 3×24 | 116×240 | △ | M16X16 |
| AN-CA480-25-3 | 25 | 3×115 | 3×30 | 106×290 | △ | M16×25 |
| AN-CA480-30-3 | 30 | 3×138 | 3×36 | 116×290 | △ | M16×25 |
| AN-CA525-15-3 | 15 | 3×57.7 | 3×16.5 | 96×240 | △ | M16×25 |
| AN-CA525-20-3 | 20 | 3×77 | 3×22 | 116×240 | △ | M16×25 |
| AN-CA525-25-3 | 25 | 3×96 | 3×27.5 | 106×290 | △ | M16×25 |
| AN-CA525-30-3 | 30 | 3×115.5 | 3×33 | 116×290 | △ | M16×25 |
| AN-CA690-15-3 | 15 | 100 | 3×12.6 | 90×280 | Y | M12×16 |
| AN-CA690-20-3 | 20 | 134 | 3×167 | 120×290 | Y | M16×25 |
| AN-CA690-25-3 | 25 | 167 | 3×21 | 120×290 | Y | M16×25 |
| AN-CA780-15-3 | 15 | 78 | 3×11.1 | 90×240 | Y | M12×16 |
| AN-CA780-20-3 | 20 | 105 | 3×14.8 | 120×240 | Y | M16×25 |
| AN-CA780-25-3 | 25 | 131 | 3×18.5 | 120×290 | Y | M16×25 |
| AN-CA780-30-3 | 30 | 157 | 3×22.2 | 120×310 | Y | M16×25 |
| AN-CA280-10-1 | 10 | 406 | 35,5 | 96×180 | All parallel | M16×25 |
| AN-CA280-12.5-1 | 12.5 | 507 | 44.5 | 106×240 | All parallel | M16×25 |
| AN-CA280-15-1 | 15 | 609 | 53.5 | 106×240 | All parallel | M16×25 |
| AN-CA280-20-1 | 20 | 812 | 71,5 | 116×290 | All parallel | M16×25 |
