When there are a large number of harmonic source of rectifier and converter in low voltage grid, serious harm to safe operation of main transformer and other electrical appliances, also adding to grid pollution.

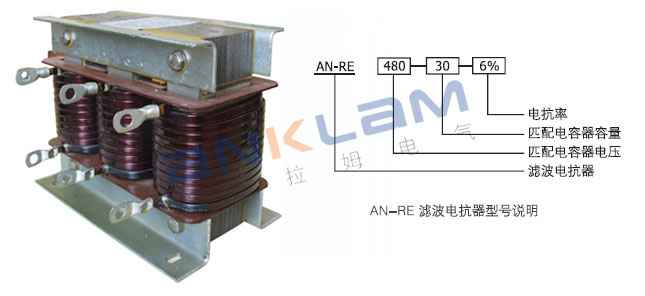

AN-RE series connection filter reactor core use silicon steel sheet with high-quality low loss cold-rolled, coil use enameled flat copper wire with grade H or C, and use in low voltage reactive power compensation, and it can effectively absorb power grid harmonics and improve power factor, and can effectively inhibit inrush current and switching overvoltage.

■Technical parameters

System voltage	400V, 660V
Reactance rate	6%, 7%, 12%, 13%
Insulation grade	3000V/min
Limit rate of temperature rise	Iron core≤85K, coil≤95K
Altitude height	≤2000m
Inductance deviation	≤±3%
Ambient temperature	-25℃~+45℃(relative humidity℃90%)
Temperature tolerance level	Grade H (180℃)

■Model parameter list

Capacitor voltage (V)	Capacitor capacity (Kvar)	Reactance rate	Size of outline (mm)	Installation dimensions (tapping) (mm)	Capacitor voltage (V)	Capacitor capacity (Kvar)	Reactance rate	Size of outline (mm)	Installation dimensions (tapping) (mm)
440V	12.5	6%	180×160×195	140×105, 4-Φ8	780V	15	6%	200×140×180	160×90,4-Φ8
440V	15	6%	180×160×195	140×105, 4-Φ8	780V	17	6%	245×150×200	205×100,4-Φ8
440V	17	6%	180×160×195	140×105, 4-Φ8	780V	20	6%	245×155×200	205×100,4-Φ8
440V	20	6%	180×160×195	140×105, 4-Φ8	780V	25	6%	245×165×195	205×110,4-Φ8
440V	25	6%	180×160×195	140×105, 4-Φ8	780V	30	6%	245×175×185	205×120,4-Φ8
440V	30	6%	220×160×240	180×85, 4-Φ10	780V	34	6%	245×180×200	205×120,4-Φ8
440V	34	6%	220×160×240	180×85, 4-Φ10	780V	40	6%	245×190×195	205×130,4-Φ8
440V	40	6%	220×170×250	180×100, 4-Φ10	780V	50	6%	260×195×200	220×130,4-Φ8
440V	50	6%	220×170×250	180×100, 4-Φ10	780V	60	6%	305×195×230	265×130,4-4-Φ 10
440V	60	6%	220×190×260	180×115, 4-Φ 10
480V	12.5	6%	180×160×195	140×105. 4-Φ8	480V	12.5	14%	220×150×245	180×85. 4-Φ10
480V	15	6%	180×160×195	140×105, 4-Φ8	480V	15	14%	220×150×245	180×85, 4-Φ10
480V	17	6%	180×160×195	140×105, 4-Φ8	480V	17	14%	220×170×255	180×100, 4-Φ10
480V	20	6%	180×160×195	140×105, 4-Φ8	480V	20	14%	220×170×255	180×100,4-Φ10
480V	25	6%	180×160×195	140×105, 4-Φ8	480V	25	14%	220×190×265	180×115, 4-Φ10
480V	30	6%	220×160×240	180×85, 4-Φ 10	480V	30	14%	220×190×265	180×115, 4-Φ10
480V	34	6%	220×160×240	180×85, 4-Φ10	480V	34	14%	220×210×290	180×115, 4-Φ10
480V	40	6%	220×170×250	180×100. 4-Φ10	480V	40	14%	220×210×290	180×115,4-Φ10
480V	50	6%	220×170×250	180×100, 4-Φ10	480V	50	14%	260×235×320	200×150, 4-Φ12
480V	60	6%	220×190×260	120×115, 4-Φ10	480V	60	14%	260×235×320	200×150, 4-Φ12
720V	12.5	6%	200×140×180	160×90, 4-Φ8	525V	12.5	14%	220×150×245	180×85, 4-Φ10
720V	15	6%	245×150×200	205×100, 4-Φ8	525V	15	14%	220×150×245	180×85, 4-Φ10
720V	17	6%	245×155×200	205×100, 4-Φ8	525V	20	14%	220×170×255	180×100, 4-Φ10
720V	20	6%	245×165×195	205×110, 4-Φ8	525V	25	14%	220×190×265	180×115, 4-Φ10
720V	25	6%	245×175×185	205×120, 4-Φ8	525V	30	14%	220×190×265	180×115, 4-Φ10
720V	30	6%	245×180×200	205×120, 4-Φ8	525V	36	14%	220×210×290	180×115, 4-Φ10
720V	34	6%	245×190×195	205×130, 4-Φ8	525V	40	14%	220×210×290	265×140,4-Φ10
720V	40	6%	260×195×200	220×130, 4-Φ8	525V	50	14%	260×235×320	200×150, 4-012
720V	50	6%	305×195×230	265×130, 4-Φ10	525V	60	14%	260×235×320	200×150, 4-012
720V	60	6%	200×145×205	160×90, 4-Φ8
	Single phase reactor parameter list
280V	10	6%	120×130×185	80×90, 4-Φ8	280V	15	6%	120×150×195	80×105, 4-Φ8
280V	12.5	6%	120×130×185	80×90, 4-Φ8	280V	20	6%	140×170×240	100×95, 4-Φ10
